AVMatrix PVS0615 6-Channel Portable Multi-Format Video Switcher with 15.6″ LCD Monitor

Price: $1,999.00
(as of Jan 22,2023 23:22:19 UTC – Details)

AVmatrix PVS0615 Portable 6-Channel Multi-format Video Switcher, 15.6″ FHD LCD Display, 6 Channel Inputs, Input Format Auto-Detected and PGM/AUX Output Format Selectable, Audio Mixer
PVS0615 is an all-in-one 6-channel video switcher that allows video switching, audio mixing, and video recording. The unit integrated a 15.6″ LCD monitor which can be used in wide variety of venues for events, seminars, etc.Key Features

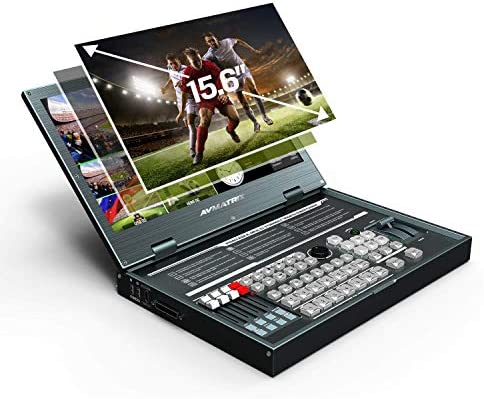

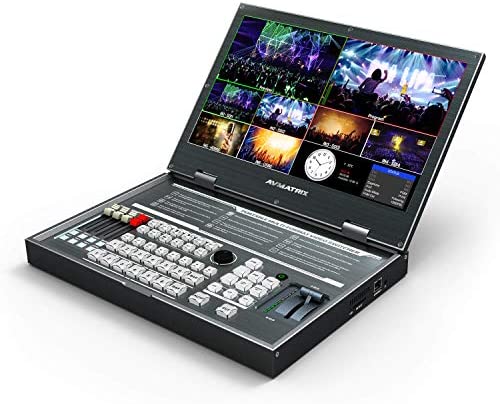

• Portable All-In-One design with 15.6 inch FHD LCD display

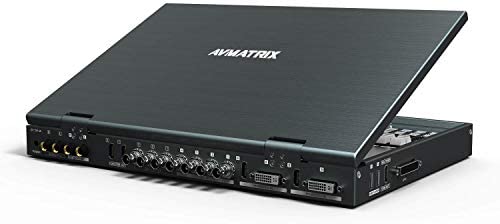

• 6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB
• 3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview out
• Input format auto-detected and PGM/AUX output format selectable
• T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
• Luma Key/ Chroma Key for virtual studio
• PIP/POP window size and position adjustable
• Record PGM video to SD card, up to 1080p60
• Audio mixer: TRS audio & SDI, HDMI, USB embedded audio

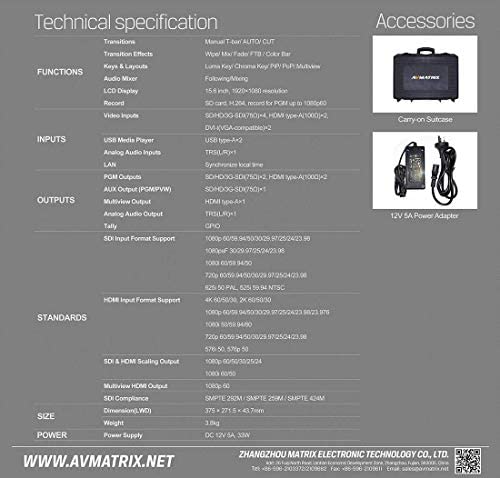

Specifications

• Resolution: 1920×1080
• Video Inputs: 4×3G/HD/SD-SDI, 2×HDMI/DVI/VGA/USB
• Bit Rate: 270Mbps~3Gbps
• Impedance: 75Ω (SDI/VGA), 100Ω (HDMI/DVI)
• SDI Video Rate: Auto detection, SD/HD/3G-SDI
• SDI Compliance: SMPTE 259M/ SMPTE 292M/ SMPTE 424M
• PGM Outputs: 3×3G/HD/SD-SDI; 2×HDMI
• PGM Output Format: 1080p 50/60/30/25/24, 1080i 50/60
• Multiview Output: 1×HDMI
• Multiview Output Format: 1080p 60
• Return Loss: >15dB 5MHz~3GHz

Signal Amplitude: 800mV±10% (SDI/HDMI/DVI/VGA)

• LAN: RJ45
• SD Card Slot: 1
• Operation Temperature: -20°C~60°C
• Storage Temperature: -30°C~70°C
• Operation Humidity: 20%~70%RH
• Storage Humidity: 0%~90%RH
• Power Supply: DC 12V 5A, 33W
• Dimensions: 10.7″W x 1.72″D x 14.76″L
• Weight: 8.38 Pounds

Portable All-In-One design with 15.6 inch FHD LCD display
6 channel inputs: 4xSDI and 2xDVI-I/HDMI/VGA/USB
3xSDI PGM out (1xAUX), 2xHDMI PGM & 1xHDMI multiview out
Input format auto-detected and PGM/AUX output format selectable
T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
